BST Sealless Battery Powered Steel Strapping Hand Tool
The Browncor Pac BST steel strapping hand tool for sealless joints or interlocking keys to form a sealless joint. Browncor Pac’s BST delivers highspeed operation and high performance in demanding applications; fitted with multiple performance-enhancing features, they improve productivity for a wide range of applications – both stationary and mobile anywhere in the plant.
Features and Benefits
Maximizes reliability
No more variation due to fluctuations in the air system. A high performance battery and brushless motor technology provides an electronically controlled and reproducible strapping process. Intelligent features include real time indication of the steel strapping status alongside visual and acoustic signals.
Simplifies operation
The BST tools have an intuitive touchscreen user interface and allows a quick and comfortable adjustment of the strapping parameters depending on the requirements offering selectable manual, semi or fully automatic operation modes.
Increases Efficiency
The Up to 500 cycles per battery charge allowing seamless and continuous operation with full mobility throughout the plant. The BST allows reproducible strapping applications with unlimited mobility and without the tripping hazards and limitations of air systems.
| BST Technical Specifications | |
| Operation Mode | Auto / Semi / Manual |
| Tension Force Range | 1000 – 5500 N |
| Weight (Including Battery) | 5.4 Kg |
| Seal Type | Sealless Notched Joint |
| Battery Type | Bosch Li-Ion ProCore 18V, 4.0 Ah |
| Cycles per Battery Charge | Up to 500 |
| Charging Time | 30 min (80%) – 50 min |
| Strapping Specifications |
| Strapping Specifications | |
| Width | 13, 16, 19 mm |
| Thickness | 0.38 – 0.63 mm (.015” – .025”) |
| Strap Quality | Supreme 850 N/mm² | Mega Supreme 1100 N/mm² |

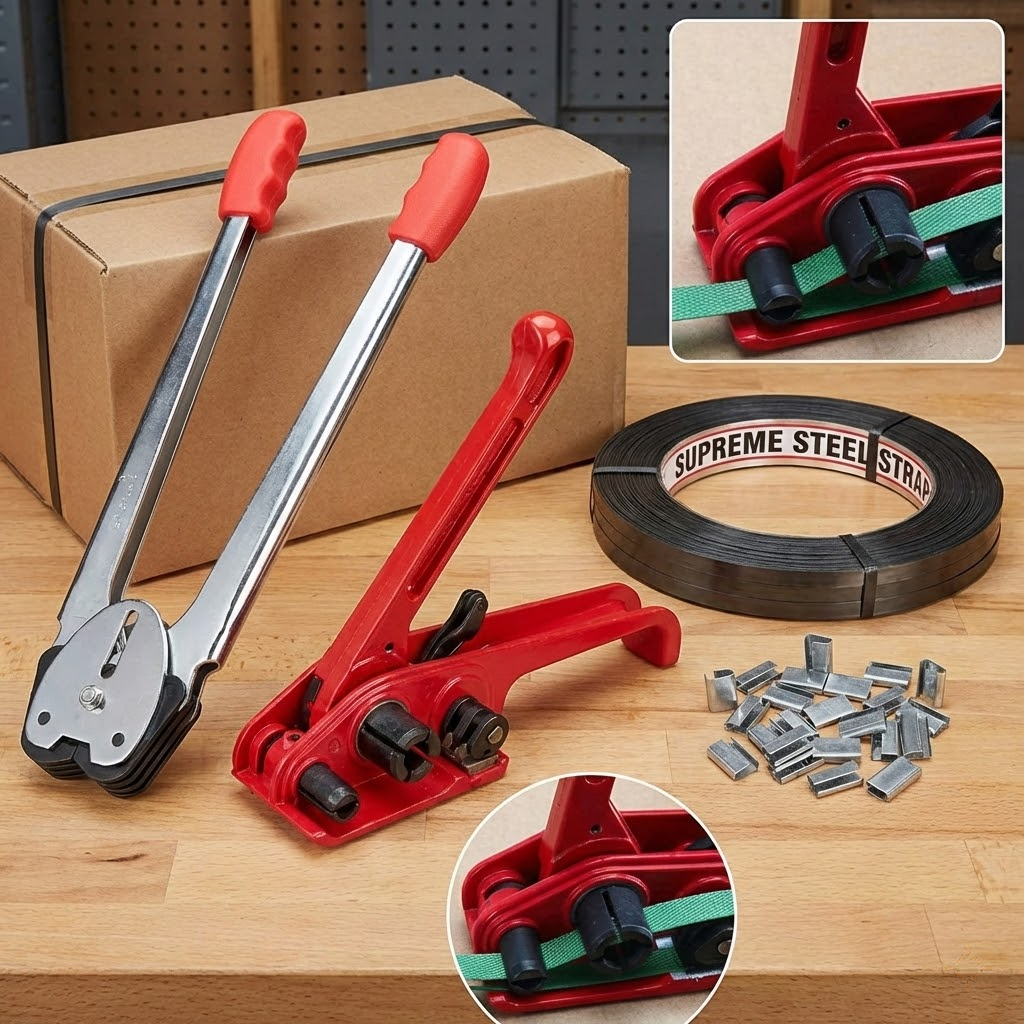

Browncor Pac produces multiple options for tensioning of steel strap. We provide manual and pneumatic hand tools for steel strap tensioning; our combination battery tools can also support.
